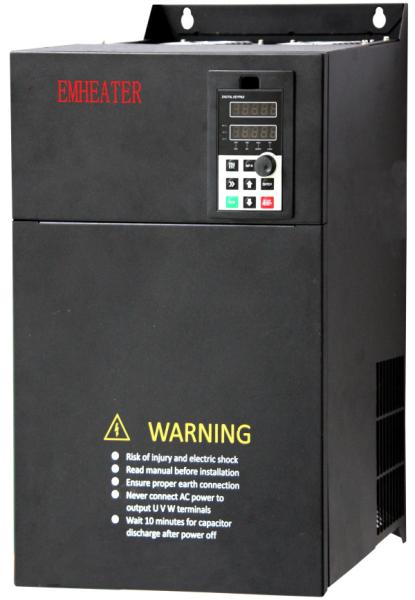

40HP 3 Phase Synchronous motor drive three phase 415V 50 to 60Hz
input
EM15-T Series inverters are high performance open loop vector
inverters for controlling asynchronous AC induction motors and
permanent magnet synchronous motors. Applying the most advanced
sensor less vector control technology which keeps pace with the
leading international technology, the product enhances its
reliability to meet the requirement of environment adaptability,
customized and industrialized design with more optimized functions,
more flexible application and more stable performance.
Product features
RS485 interface as standard, support Modbus protocol in RTU mode.
Intelligent parameter setting, internal preset several sets of
common parameters, reduce user parameter setting workload.
- New added functions of current realization and overvoltage
suppression can effectively reduce the frequency of frequency
converter fault protection.
- Self-learning function of motor parameters can enhance the
corresponding speed and control accuracy.
- All series conformal coating can improve the product reliability
and environmental adaptation.
Built-in various functional modules to effectively reduce external
system costs.
With perfect inertia and torque compensation function, open loop
tension control adaptability is stronger .
| Input Voltage | 220V/380V/480V±15% |
| Input Frequency | 47~63Hz |
| Input Frequency Resolution | 0.01Hz (Digital setting); maximum frequency×0.025% (Analog setting) |
| Output Voltage | 0~Rated input voltage |
| Output Frequency | 0~320Hz(SFC); 0~3200Hz (V/F) |
| Control Mode | Sensor-less vector control(SVC); Closed-loop vector control (FVC);
Voltage/Frequency (V/F) control |
| Speed Stability Accuracy | ±0.5%(SVC);±0.02%(FVC) |
| Torque Control Accuracy | ±5%(FVC) |
| Overload Capacity | G type:150% rated current 60s; 180% rated current 3s; P type: 120%
rated current 60s;150% rated current 3s. |
| Torque Boost | Auto boost; Manual boost 0.1%~30.0% |
| DC braking | 0.00Hz~maximum frequency (DC braking frequency); 0.0s~36.0s(Braking
time); 0.0%~100.0%( Braking trigger current value) |
| Built-in Simple PLC / Multiple Speeds | It realizes up to 16 speeds via the simple PLC function or
combination of DI terminal states. |
| Rapid Current Limit | To avoid frequently over current faults of the frequency inverter. |
| Torque Limit and Control | It can limit the torque automatically and prevent frequently over
current tripping during the running process. Torque control can be
implemented in the VC mode. |
| High Performance | Control of asynchronous motor and synchronous motor are implemented
through the high-performance current vector control technology. |
| Virtual I/O | Five groups of virtual DI/DO can realize simple logic control. |
| Timing Control | Time range: 0.0~6500.0 minutes |
| Motor Overheat Protection | The optional I/O extension card enables AI3 to receive the motor
temperature sensor input (PT100, PT1000) so as to realize motor
overheat protection. |
Model
| Model | EM15-T3 |
| 004 | 5d5 | 7d5 | 011 | 015 | 018 | 022 | 030 | 037 | 045 | 055 | 075 | 090 | 110 | 132 | 160 | 200 | 220 | 250 | 280 | 315 | 355 | 400 | 450 |
| Input | Voltage/Freq. | 3PH 380V；50Hz/60Hz |
| Current(A) | 14.6 | 20.5 | 26 | 35 | 38.5 | 46.5 | 62 | 76 | 92 | 113 | 128 | 157 | 180 | 214 | 256 | 307 | 385 | 430 | 468 | 525 | 590 | 665 | 785 | 883 |
| Voltage range | Allowable voltage fluctuation range:±15% |
| Output | Voltage | 3PH 0V~rated voltage |
| Current(A) | 9 | 13 | 17 | 25 | 32 | 37 | 45 | 60 | 75 | 91 | 112 | 150 | 176 | 210 | 253 | 304 | 377 | 426 | 465 | 520 | 585 | 650 | 725 | 820 |
| Overload | 150% rated current 60s, 180% rated current 3s |
| Adapted motor(KW) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 220 | 250 | 280 | 315 | 355 | 400 | 450 |
| Brake Unit | Built-in as standard | External |
| Output frequency | 0~3000Hz |
| Cooling | Fan cooling |
| Altitude | Lower than 1000m |
| Ambient temperature | －10℃～＋40℃40(ambient temperation at 40℃~50℃,please keep derated use) |
| Storage temperature | －20℃～＋60℃ |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
| Protection level | IP20 |
Application
Stone, brick and wood
Energy saving, big torque quickly move up and down.
Torque current control uniform cutting and big torque with low
speed.
Start and stop quickly, built-in crafts control.
Steady speed with high accuracy and big torque, high yield of
production ratio.
Plastics processing /Extrusion processing
Standard inverter cabinet with injection molding signal card.
Energy saving cabinet built in inverter and bypass.
Built in charging function to support mode of contract saving
energy.
Extrusion force is big, Avoid tripping, uniform extruding flow.
Quickly and strong force output, Multiple pumps have good
synchronization performance.
High energy-saving rate, with conversion of inverter and grid
power.
Other applications
Industrial washing machine: Many brands supporting, large power washing, high speed
dehydration stable.
Centrifuge: Large torque, fast acceleration and deceleration, applicable in
harsh environments.
Musical Fountain: Large starting torque, current limit function, do not trip.
Mechanical vibrator: Fast acceleration and deceleration performance, excellent feature
for motor forward and reverse control.
