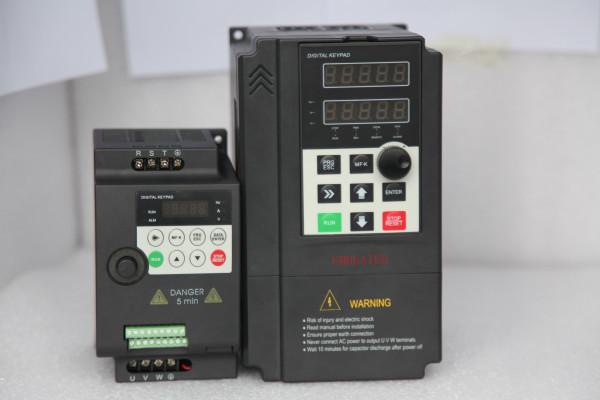

7.5KW Synchronous Inverters 3 phase 380V input for blower fan
EM15-T Series inverters are high performance open loop vector
inverters for controlling asynchronous AC induction motors and
permanent magnet synchronous motors. Applying the most advanced
sensor less vector control technology which keeps pace with the
leading international technology, the product enhances its
reliability to meet the requirement of environment adaptability,
customized and industrialized design with more optimized functions,
more flexible application and more stable performance.
Product features
- Self-learning function of motor parameters can enhance the
corresponding speed and control accuracy.
- All series conformal coating can improve the product reliability
and environmental adaptation.
- Support PG collector signal, differential signal and other encoder
interfaces, making the closed loop vector control realize
conveniently.
- New added functions of current realization and overvoltage
suppression can effectively reduce the frequency of frequency
converter fault protection.
| Input Voltage | 220V/380V/480V±15% |
| Input Frequency | 47~63Hz |
| Input Frequency Resolution | 0.01Hz (Digital setting); maximum frequency×0.025% (Analog setting) |
| Output Voltage | 0~Rated input voltage |
| Output Frequency | 0~320Hz(SFC); 0~3200Hz (V/F) |
| Control Mode | Sensor-less vector control(SVC); Closed-loop vector control (FVC);
Voltage/Frequency (V/F) control |
| Carrier Frequency | 0.5kHz~16kHz |
| Startup Torque | G type: 0.5Hz/150% (FVC); 0Hz/180%(FVC); P type: 0.5Hz/100% |
| Speed Range | 1:100(SVC);1:1000(FVC) |
| Speed Stability Accuracy | ±0.5%(SVC);±0.02%(FVC) |
| Torque Control Accuracy | ±5%(FVC) |
| Overload Capacity | G type:150% rated current 60s; 180% rated current 3s; P type: 120%
rated current 60s;150% rated current 3s. |
| Built-in PID | It realizes closed loop control system easily. |
| Auto voltage regulation (AVR) | It can keep constant output voltage automatically when the mains
voltage fluctuation |
| Overvoltage/ Overcurrent Stall Control | The current and voltage are limited automatically during the
running process so as to avoid frequently tripping due to
overvoltage / over current. |
| Rapid Current Limit | To avoid frequently over current faults of the frequency inverter. |
| Torque Limit and Control | It can limit the torque automatically and prevent frequently over
current tripping during the running process. Torque control can be
implemented in the VC mode. |
| High Performance | Control of asynchronous motor and synchronous motor are implemented
through the high-performance current vector control technology. |
Model
| Model | EM15-T3 |
| 004 | 5d5 | 7d5 | 011 | 015 | 018 | 022 | 030 | 037 | 045 | 055 | 075 | 090 | 110 | 132 | 160 | 200 | 220 | 250 | 280 | 315 | 355 | 400 | 450 |
| Input | Voltage/Freq. | 3PH 380V；50Hz/60Hz |
| Current(A) | 14.6 | 20.5 | 26 | 35 | 38.5 | 46.5 | 62 | 76 | 92 | 113 | 128 | 157 | 180 | 214 | 256 | 307 | 385 | 430 | 468 | 525 | 590 | 665 | 785 | 883 |
| Voltage range | Allowable voltage fluctuation range:±15% |
| Output | Voltage | 3PH 0V~rated voltage |
| Current(A) | 9 | 13 | 17 | 25 | 32 | 37 | 45 | 60 | 75 | 91 | 112 | 150 | 176 | 210 | 253 | 304 | 377 | 426 | 465 | 520 | 585 | 650 | 725 | 820 |
| Overload | 150% rated current 60s, 180% rated current 3s |
| Adapted motor(KW) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 220 | 250 | 280 | 315 | 355 | 400 | 450 |
| Brake Unit | Built-in as standard | External |
| Output frequency | 0~3000Hz |
| Cooling | Fan cooling |
| Altitude | Lower than 1000m |
| Ambient temperature | －10℃～＋40℃40(ambient temperation at 40℃~50℃,please keep derated use) |
| Storage temperature | －20℃～＋60℃ |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
| Protection level | IP20 |
Application
Printing/Packaging Machine
Have wire breakage alarm, automatic shutdown, rocker, floating
roller once in place.
Super performance of fast acceleration and deceleration, ensure
product consistency.
Reciprocating acceleration and deceleration used short time,
precise positioning.
High Stability torque control mode makes stable rewinding.
Machine tool
Operating frequency can be up to 3000 Hz, suitable for drilling
machine and carving and milling machine.
Big cutting forces, steady speed and high precision.
Can stable operation at high speed.
Terminal RS485 support 500k communication rate.
Various vector control can be applied to all kinds of machine
tools.
Other applications
Industrial washing machine: Many brands supporting, large power washing, high speed
dehydration stable.
Centrifuge: Large torque, fast acceleration and deceleration, applicable in
harsh environments.
Musical Fountain: Large starting torque, current limit function, do not trip.
Mechanical vibrator: Fast acceleration and deceleration performance, excellent feature
for motor forward and reverse control.
