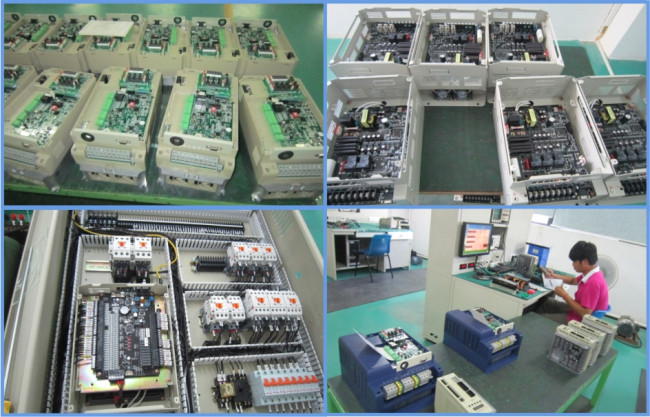

18.5KW Synchronous Inverters 3 phase 380V 400Hz for Spindle motor
EM15-T is a new generation of high performance vector synchronous
motor drive developed by our company. This series has excellent
vector control performance, powerful overload ability and good
dynamic characteristics. It realizes the speed and torque control
of three-phase AC synchronous motor and meets the application
requirements of different automatic production equipment.
Product features
- Support PG collector signal, differential signal and other encoder
interfaces, making the closed loop vector control realize
conveniently.
- New added functions of current realization and overvoltage
suppression can effectively reduce the frequency of frequency
converter fault protection.
- Self-learning function of motor parameters can enhance the
corresponding speed and control accuracy.
- All series conformal coating can improve the product reliability
and environmental adaptation.
| Carrier Frequency | 0.5kHz~16kHz |
| Startup Torque | G type: 0.5Hz/150% (FVC); 0Hz/180%(FVC); P type: 0.5Hz/100% |
| Speed Range | 1:100(SVC);1:1000(FVC) |
| Speed Stability Accuracy | ±0.5%(SVC);±0.02%(FVC) |
| Torque Control Accuracy | ±5%(FVC) |
| Overload Capacity | G type:150% rated current 60s; 180% rated current 3s; P type: 120%
rated current 60s;150% rated current 3s. |
| Torque Boost | Auto boost; Manual boost 0.1%~30.0% |
| DC braking | 0.00Hz~maximum frequency (DC braking frequency); 0.0s~36.0s(Braking
time); 0.0%~100.0%( Braking trigger current value) |
| Built-in Simple PLC / Multiple Speeds | It realizes up to 16 speeds via the simple PLC function or
combination of DI terminal states. |
| Built-in PID | It realizes closed loop control system easily. |
| Auto voltage regulation (AVR) | It can keep constant output voltage automatically when the mains
voltage fluctuation |
| Overvoltage/ Overcurrent Stall Control | The current and voltage are limited automatically during the
running process so as to avoid frequently tripping due to
overvoltage / over current. |
| Virtual I/O | Five groups of virtual DI/DO can realize simple logic control. |
| Timing Control | Time range: 0.0~6500.0 minutes |
| Motor Overheat Protection | The optional I/O extension card enables AI3 to receive the motor
temperature sensor input (PT100, PT1000) so as to realize motor
overheat protection. |
| Multiple Encoder Types | It supports differential encoder, open-collector encoder |
| Protection Mode | Motor short-circuit detection at power-on, input/output phase loss
protection, over current and overvoltage protection, less voltage
protection, overheat protection and overload protection,etc |
| Running Command Giving | key panel; Control terminals; Serial communication port; You can
switch between these giving in various ways. |

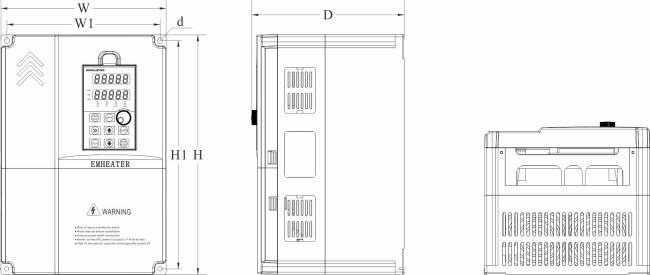

Model
| Model | EM15-T3 |
| 004 | 5d5 | 7d5 | 011 | 015 | 018 | 022 | 030 | 037 | 045 | 055 | 075 | 090 | 110 | 132 | 160 | 200 | 220 | 250 | 280 | 315 | 355 | 400 | 450 |
| Input | Voltage/Freq. | 3PH 380V；50Hz/60Hz |
| Current(A) | 14.6 | 20.5 | 26 | 35 | 38.5 | 46.5 | 62 | 76 | 92 | 113 | 128 | 157 | 180 | 214 | 256 | 307 | 385 | 430 | 468 | 525 | 590 | 665 | 785 | 883 |
| Voltage range | Allowable voltage fluctuation range:±15% |
| Output | Voltage | 3PH 0V~rated voltage |
| Current(A) | 9 | 13 | 17 | 25 | 32 | 37 | 45 | 60 | 75 | 91 | 112 | 150 | 176 | 210 | 253 | 304 | 377 | 426 | 465 | 520 | 585 | 650 | 725 | 820 |
| Overload | 150% rated current 60s, 180% rated current 3s |
| Adapted motor(KW) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 220 | 250 | 280 | 315 | 355 | 400 | 450 |
| Brake Unit | Built-in as standard | External |
| Output frequency | 0~3000Hz |
| Cooling | Fan cooling |
| Altitude | Lower than 1000m |
| Ambient temperature | －10℃～＋40℃40(ambient temperation at 40℃~50℃,please keep derated use) |
| Storage temperature | －20℃～＋60℃ |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
| Protection level | IP20 |
Application
Printing/Packaging Machine
Have wire breakage alarm, automatic shutdown, rocker, floating
roller once in place.
Super performance of fast acceleration and deceleration, ensure
product consistency.
Reciprocating acceleration and deceleration used short time,
precise positioning.
High Stability torque control mode makes stable rewinding.
Lifting equipment
Stable and reliable operation, with mechanical brake to realize
halfway stop and start.
Compatible with YASKAWA independent protocol.
Wide operating voltage, low-voltage power shake can work
continuously, strong environmental adaptability.
Multi-speed synchronous transmission performance is good; low-speed
with large torque has heavy load capacity.
Large lifting torque, energy-saving.
Plastics processing /Extrusion processing
Standard inverter cabinet with injection molding signal card.
Energy saving cabinet built in inverter and bypass.
Built in charging function to support mode of contract saving
energy.
Extrusion force is big, Avoid tripping, uniform extruding flow.
Quickly and strong force output, Multiple pumps have good
synchronization performance.
High energy-saving rate, with conversion of inverter and grid
power.
