30kw Soft Starter Built In Bypass

    Buy cheap 30kw Soft Starter Built In Bypass from wholesalers

    Buy cheap 30kw Soft Starter Built In Bypass from wholesalers
    • Buy cheap 30kw Soft Starter Built In Bypass from wholesalers
    • Buy cheap 30kw Soft Starter Built In Bypass from wholesalers

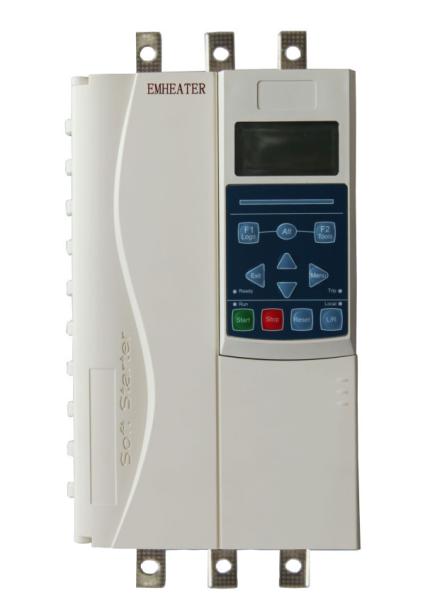

    30kw Soft Starter Built In Bypass

    Ask Lasest Price
    Brand Name : EMHEATER
    Model Number : EM-GB3-030
    Certification : CE, Rohs,ISO9001
    Price : Please contact for quotation
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs per week
    Delivery Time : 1~7 work days
    • Product Details
    • Company Profile

    30kw Soft Starter Built In Bypass

    30KW Built in Bypass Soft Starter three phase 400V 50 to 60Hz input

    EM motor soft starter is suitable for squirrel cage asynchronous motor control with various loads to ensure reliable start of motor. It has a complete system protection function, extend the service life of the system, reduces the cost of the system, improves the reliability of the system and compatible with various functions of all devices. It is a new ideal alternative for traditional star triangle starter and self-coupling decompression starter.


    Product features


    • Advanced software performance

      With intelligent logic, fast complete soft starting process. Parameter can directly calibrate current and voltage displaying value.


      Excellent control performance

      With voltage and current limiting and etc six starting modes to adapt to different types of load; and soft stop mode to reduce power shock.


      Perfect protection function

      All series with over current, over voltage, overlord and etc protection functions ,it can effectively guarantee the normal operation of the motor.


    • Advanced soft starter type: "voltage control type" and "current limiting type".
    • Capacity to motor effectively, so it could save the cost.
    • Intelligent, digital and single chip control.
    • The perfect and reliable protection features, can give the effective protection to the operator's safety as well as the motor and matched equipments. Such over voltage; over current, over load, over heat, short circuit , lower voltage, input or output phase failure; three phase imbalance, starting time over long protection etc.
    • The reliable function and quality is the basic of the best service. even more, we can supply the special designing and functions of product matched to your need ,and ,the timely and perfect application consulting service.
    Selectable soft starting profilesCustomisable protection

    Adaptive Control

    Constant Current

    Current Ramp

    Motor overload

    Excess Start Time

    Undercurrent

    Instantaneous overcurrent

    Current imbalance

    Mains frequency

    Input Trip

    Motor thermistor

    Power circuit

    Phase sequence

    Selectable soft stopping profilesModels for all connection requirements

    Coast To Stop

    Timed voltage ramp soft stop

    Adaptive Control

    Brake

    23 A~1000 A (nominal)

    380~415 VAC

    Internally bypassed

    In-line or inside delta connection

    Extensive input and output optionsOptional features for advanced applications

    Remote control inputs (3 fixed, 2 programmable

    Relay outputs (1 fixed, 3 programmable)

    Analog output

    Built-in PT100 RTD input

    Optional expansion cards

    Input/output expansion

    RTD and Ground fault protection

    Communication modules: Modbus, Modbus RTU

    Easy-to-read display with comprehensive feedback

    Removable keypad

    Multi-language feedback

    Date and time stamped event logging

    Operational counters (number of starts, hours-run, kWh)

    Performance monitoring (current, voltage, power factor, kWh)

    User-programmable monitoring screen


    Soft starter model


    Model

    Rated Power

    Rated Current

    Dimensions(mm)

    N.W.

    (KW)

    (A)

    A

    B

    C

    D

    E

    (Kg)

    EM-GB3-0111122152923122692155.2
    EM-GB3-0151530
    EM-GB3-01818.537
    EM-GB3-0222244
    EM-GB3-0303060
    EM-GB3-0373775152923122692155.2
    EM-GB3-0454590
    EM-GB3-05555110
    EM-GB3-0757515027516041039026518.3
    EM-GB3-09090180
    EM-GB3-115115230
    EM-GB3-132132264443

    320

    160*2

    60054029035.8
    EM-GB3-160160320
    EM-GB3-200200400
    EM-GB3-250250500
    EM-GB3-280280560
    EM-GB3-315315630
    EM-GB3-355355710

    30kw Soft Starter Built In Bypass30kw Soft Starter Built In Bypass30kw Soft Starter Built In Bypass

    FAQ


    Who are we?

    We are based in Guangdong, China, start from 2017,sell to Domestic Market(50.00%),Southeast Asia(12.00%),Eastern Europe(12.00%),South America(5.00%),Eastern Asia(3.00%),Northern Europe(3.00%),Oceania(3.00%),Southern Europe(3.00%),North America(2.00%),Western Europe(2.00%),Mid East(2.00%),Africa(1.00%),South Asia(1.00%),Central America(1.00%). There are total about 51-100 people in our office.


    What kind of product quality your factory offer?

    We offer most competitive prices with best quality


    What's the delivery term?

    Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDU, etc.


    What's the payment term?

    Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
